ATG 고정밀 유성감속기 PBL 시리즈 – 서보 시스템에 최적화된 유성감속기
by ATG 감속기
2025. 6. 2.
ATG 고정밀 유성감속기 PBL 시리즈 – 서보 시스템에 최적화된 유성감속기 산업자동화와 공장자동화 시스템에서 고정밀 감속기의 역할은 장비 성능의 핵심 요소 중 하나입니다. ATG 감속기의 PBL 시리즈 는 서보모터 시스템에 최적화된 고정밀 유성감속기로, 고강성, 저소음, 고효율 설계를 바탕으로 다양한 자동화 설비에 폭넓게 적용되고 있습니다.
PBL 시리즈의 핵심 특징
헬리컬 기어 적용 : 기어 접촉율을 높여 부드러운 구동과 저소음을 실현합니다.일체형 기어박스 구조 : 하우징과 내부 링이 통합되어 고강성과 높은 출력 토크를 제공합니다.Full Needle Roller Bearings : Retainer가 없는 구조로 접촉면이 넓어 내구성과 토크 전달 능력을 극대화합니다.Collet Locking System : 안정적인 샤프트 체결로 고속에서도 백래시가 발생하지 않습니다.높은 효율 : 1단은 95%, 2단은 92% 이상의 효율을 실현합니다.
정확한 제어를 위한 백래시 성능
1단: 10 arcmin 이하
2단: 12 arcmin 이하
다양한 감속비 제공
1-Stage: 3 ~ 20 (3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, 20)
2-Stage: 15 ~ 200 (15, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100, 120, 140, 160, 180, 200)
적용 분야
공작기계
산업용 로봇
반도체 장비
공장자동화 시스템
의료기기 등
정밀 유성감속기 솔루션 적용, 앱솔루텍이 지원합니다 저희 앱솔루텍 은 ATG 감속기 공식대리점 PBL 시리즈 및 정밀 유성감속기에 대한 상세한 상담과 납기 문의는 언제든지 앱솔루텍으로 연락 주십시오.
감사합니다.
[ ATG감속기 공식대리점 주식회사 앱솔루텍 ]
Spiral Bevel Gear
Integrated Planetary Arm Bracket
한번에 접촉하는 기어 물림의 길이가 크기 때문에 일반 bevel gear에 비해 운동이 부드럽고,
Planetary Arm Bracket와 출력 Shaft는 일체형 구조로
Full Needle Roller Bearings Design
Collet Locking Mechanism

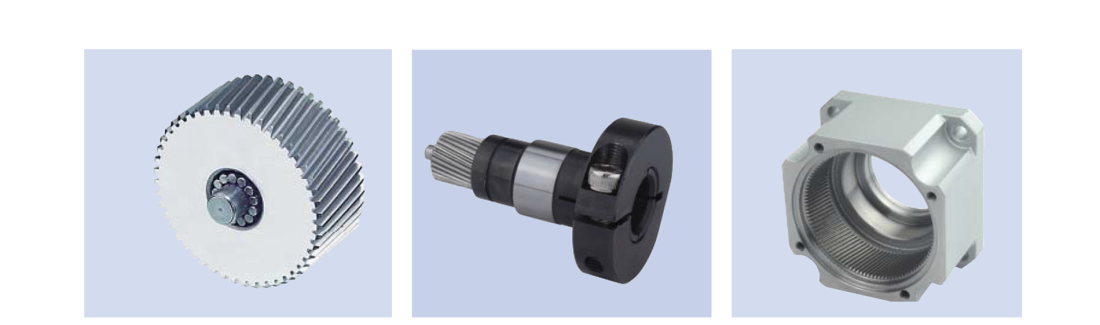

One-piece Helical Gear Box body
Planetary 변속기어는 접촉면 증가를 위한 Retainer 없는
Motor Shaft를 연결하기 위한 Collet Clamp 방식으로
감속기 케이스에 내치기어를 일체형으로 정밀 가공하였고,
